HARDI Grassland Sprayer - 1200L

Contact Roger for a quote or more information.
1300-765997

The 1200 litre Grassland is an affordable, uncomplicated sprayer that makes light work of pasture and small crop spraying.

With a low centre of gravity, the leaf spring suspension and optional air bag boom suspension give excellent boom ride. Clearance can be as high as 48 cm on optional 12.4 x 24 tyres.

A 120 litre rinse tank makes in-field flushing quick and easy, while a separate 15 litre hand wash tank is provided for the operator.

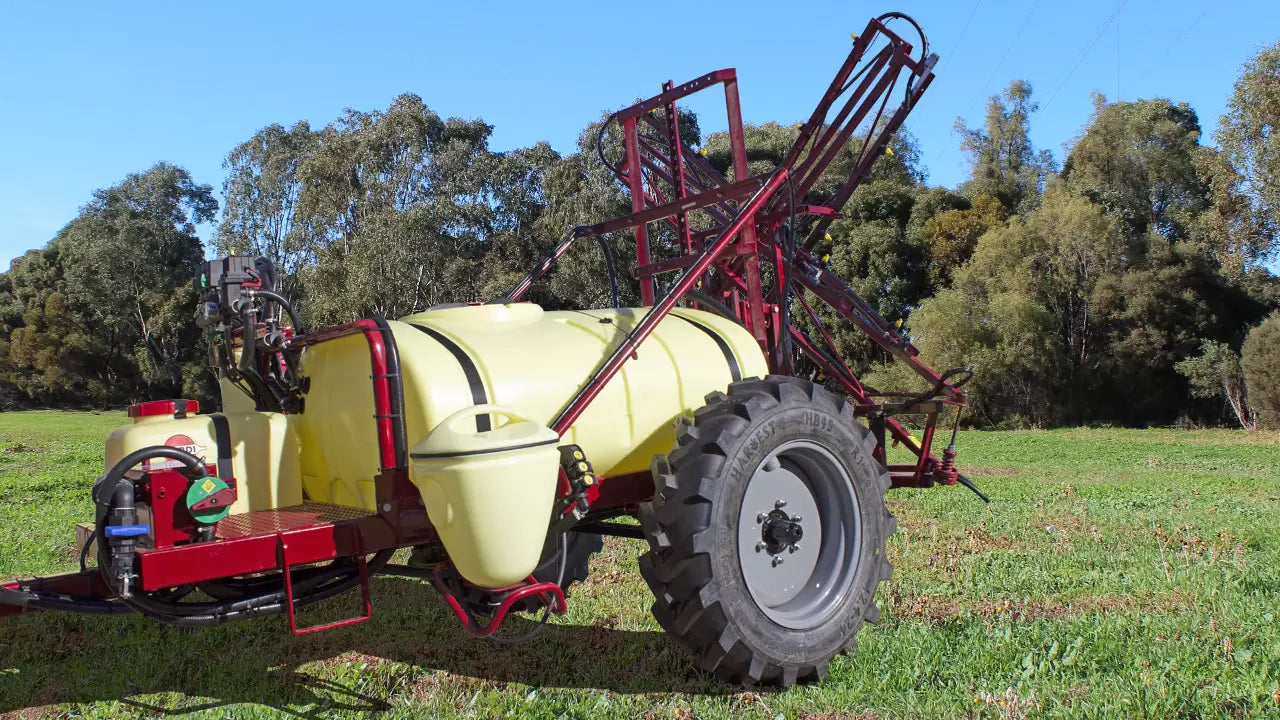

Practical boom choices

Grassland can be equipped with a range of small booms that make it a viable alternative to linkage sprayers.

Choose from 6 m, 8, m or 10 m SB booms; the 12 m MB boom, or a hydraulic folding (including independent side folding) HYS boom with 12 m width.

Both the MB and HYS booms include air bag suspension and an inertia trapeze mounting as standard, and hydraulic height control can be added as an option.

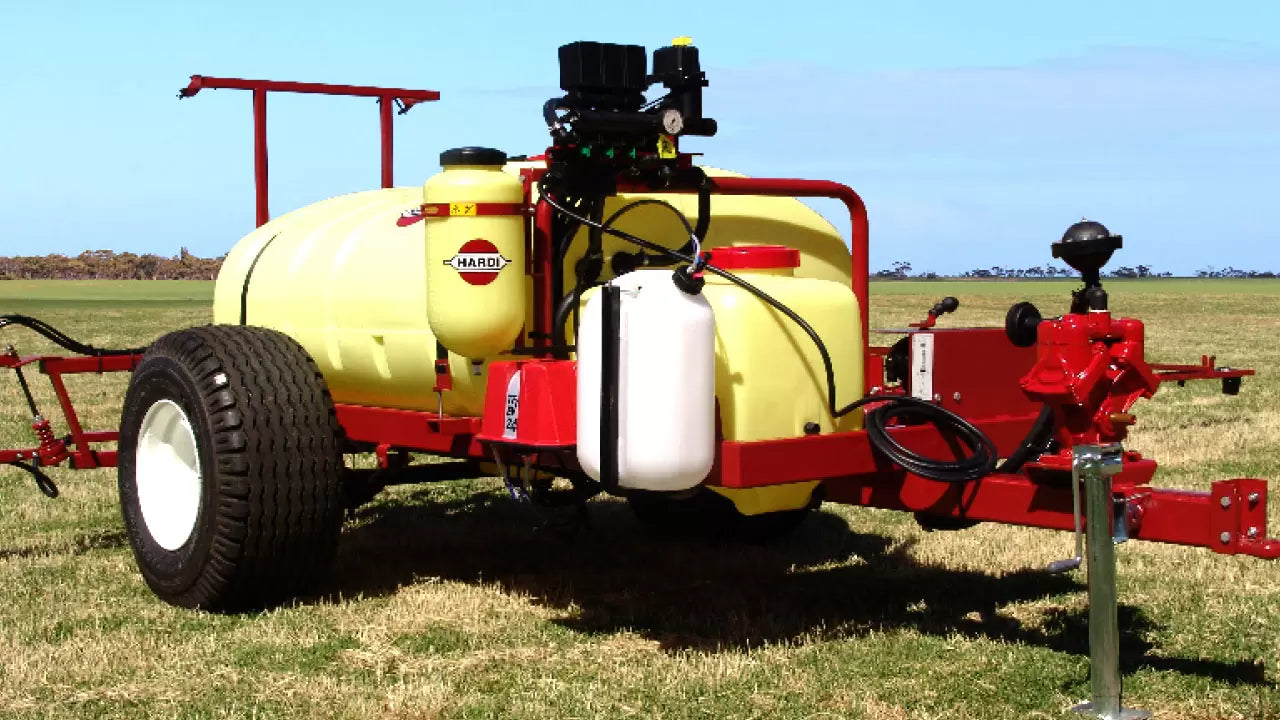

Flexible options

From the basic sprayer, GRASSLAND has many options to let you build an highly functional trailer. These added features can include:

• 25 litre TurboFiller with TurboDeflector
• 30 m or 50 m Hose Reel with spray gun
• In-line filter
• Foam marker
• HARDI 1303 diaphragm pump (114 l/min)

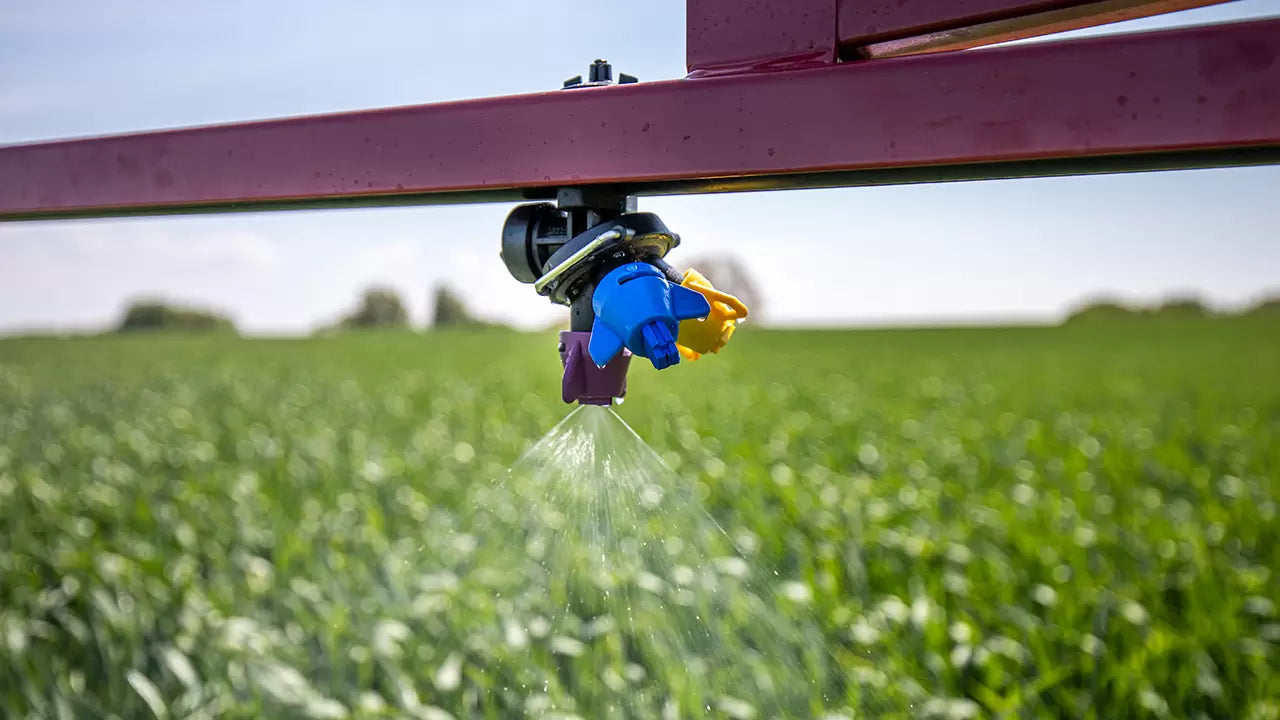

• Triplet nozzle bodies
• Hi Mount boom wing support and trapeze (SB boom)
• 5 HP petrol motor in place of PTO connection

Application Rate Control

EVC electric valve control provides remote pressure regulation, plus nozzle on/off and section control when connected to a SprayBox 2 rate controller.

The SprayBox 2 is an affordable way to manage the fluid pressure and section valves from the tractor seat.

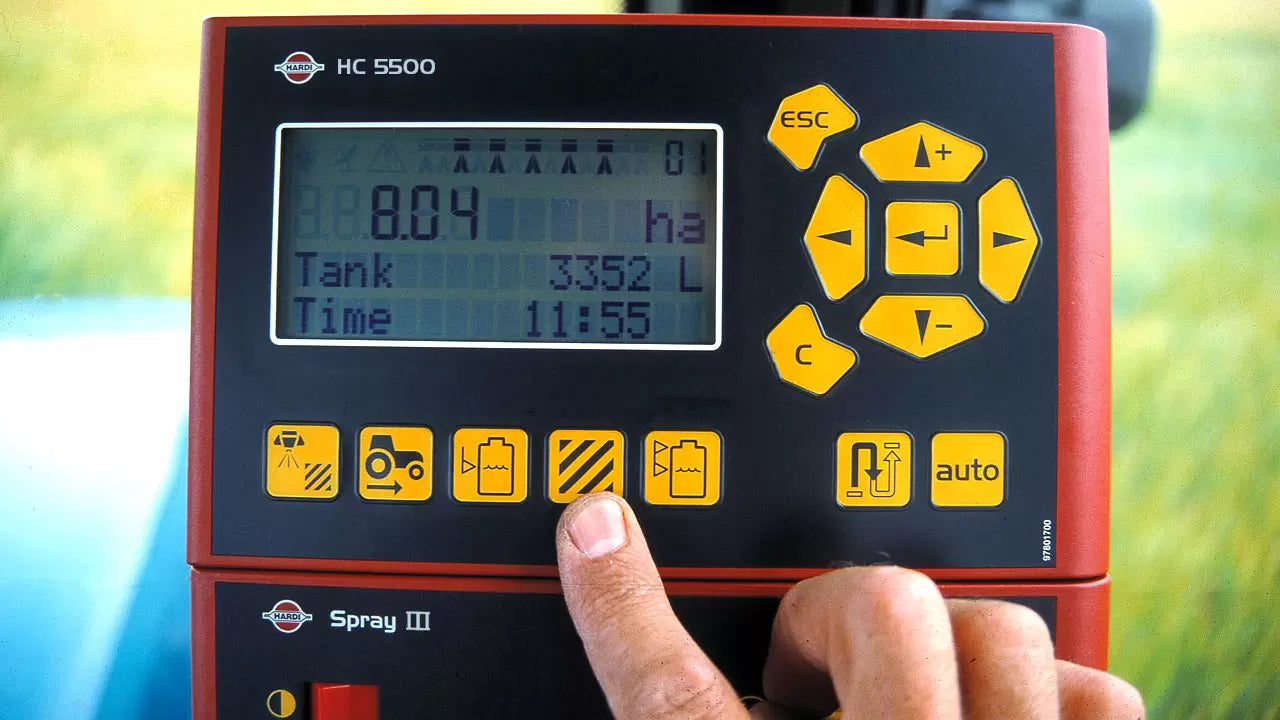

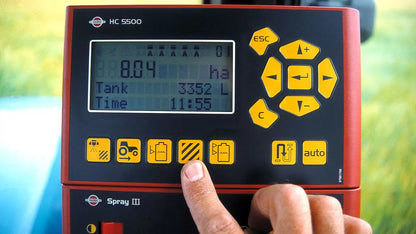

GRASSLAND can also be controlled from the cab using the robust HC 5500 controller. This spray computer maintains an accurate application rate regardless of forward speed, and the rate can be changed on the go with the touch of a button.

HARDI GRASSLAND SPECIFICATIONS

Tank: 1200 L

Liquid System: 3-Section Valve Control

Filling: 25L TurboFiller and 1.5L FastFill options

Axle: Fixed 1.8m axle with leaf spring suspension

Controller: EVC-3 or optional HC5500

Booms:
SB: Simple, strong manual fold boom (6-10m)
MB: Robust manual fold steel boom (12m)
HYS: Flexible, light and compact (12m)
