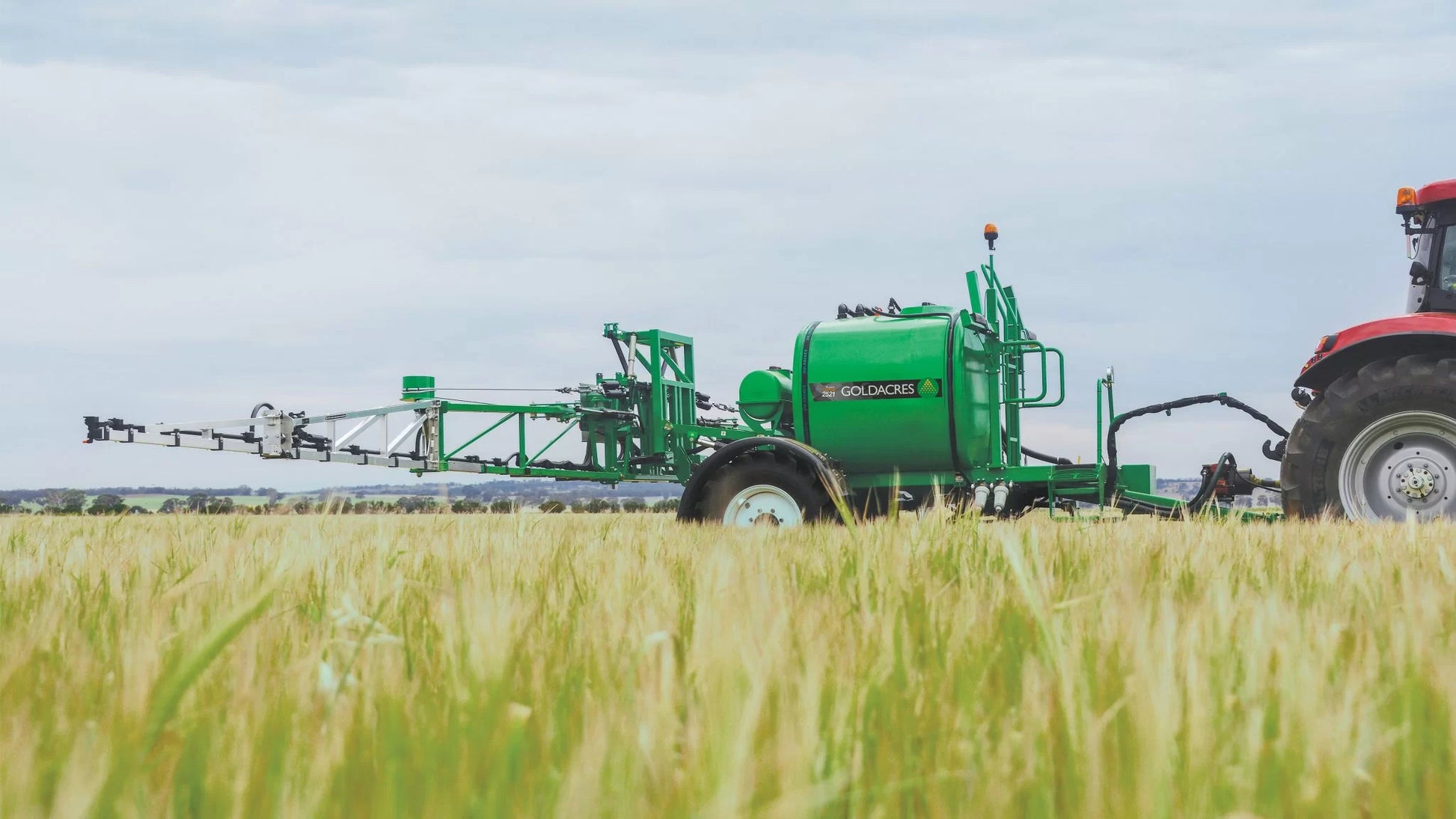

Goldacres Prairie Special - 1500L / 2000L / 2500L / 3000L

Name: Goldacres Prairie Special - 1500L / 2000L / 2500L / 3000L
Brand: iSpray Ag Solutions
Availability: InStock

$0.00 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Contact Roger for a quote or more information.
1300-765997

Features	Prairie Special 1500L, 2000 & 2500L	Prairie Special 3000L

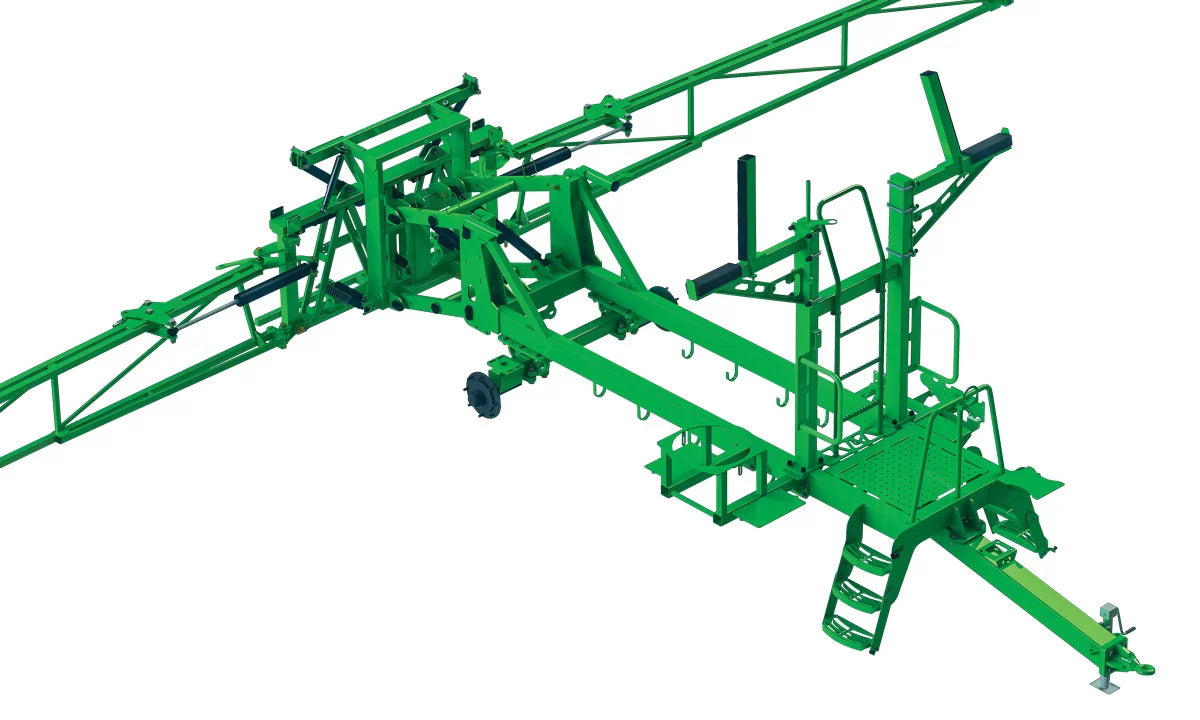

Chassis	Fully welded modular construction 125 x 75 x 6mm RHS Single beam bolt on drawbar with forged tow eye	Fully welded modular construction 125 x 75 x 6mm RHS Single beam bolt on drawbar with forged tow eye
Stub axle size	70mm	70mm
Axle type	Rigid axle – standard	Rigid axle – standard
Axle track width	1800mm – other widths on request	1800mm – other widths on request
Wheel and Tyre sizes	14.9 x 24	16.9 x 34

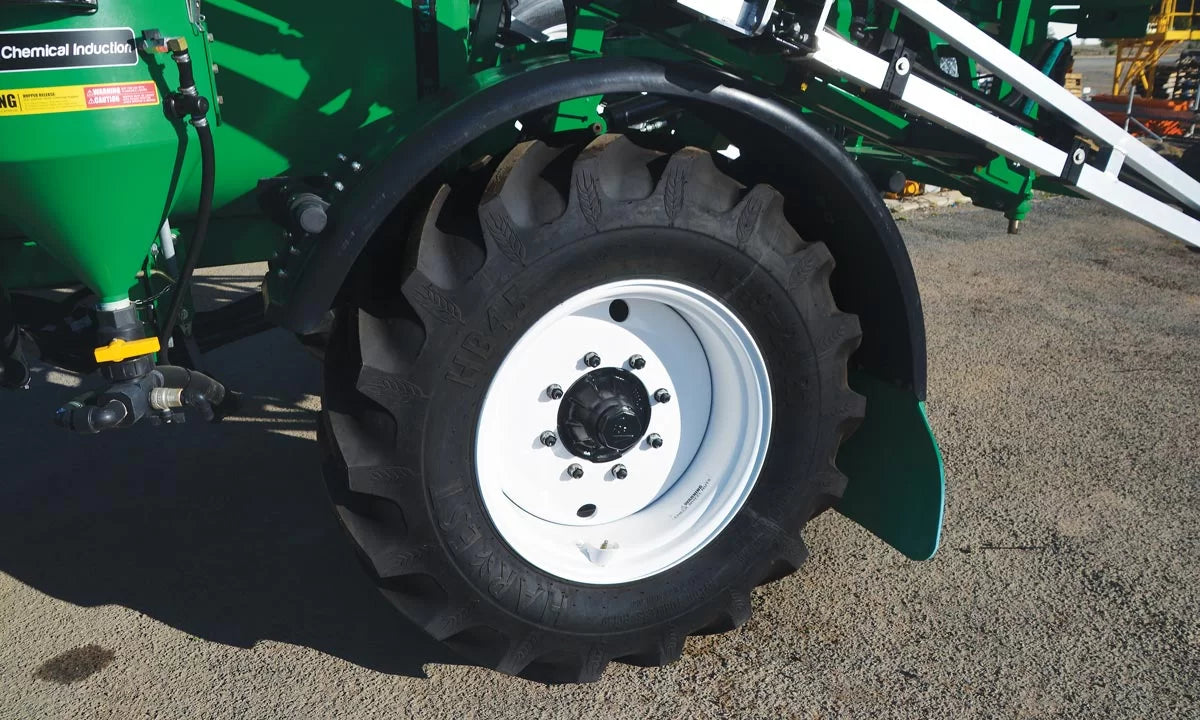

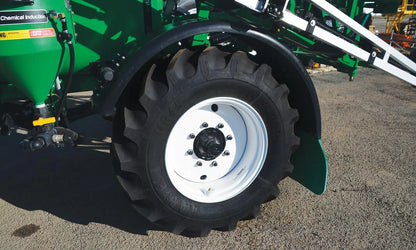

Full length poly mudguards with mud flaps	Optional	Optional
Tow bar	N/A	Optional

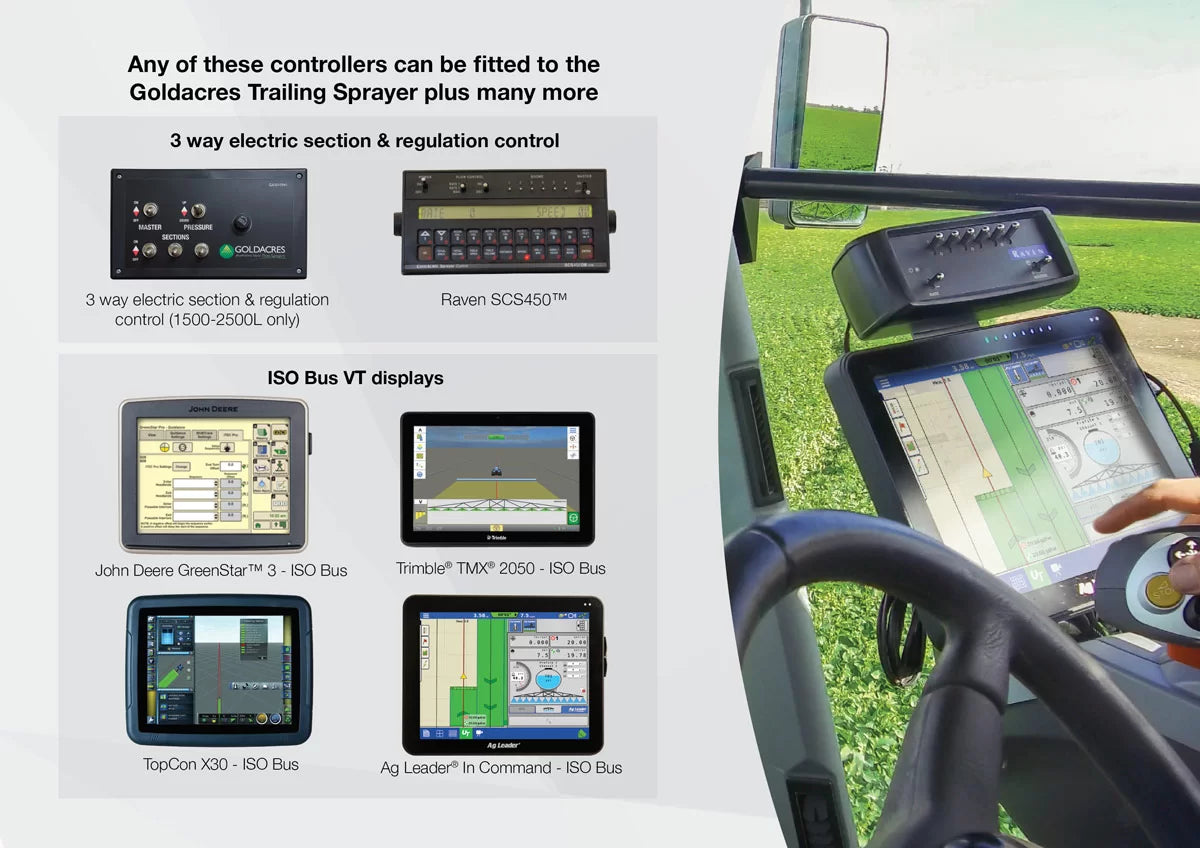

Rate controller	3 way electric with electric regulation – standard Raven SCS450 – optional ISO BUS – optional	Raven SCS450 ISO BUS – optional

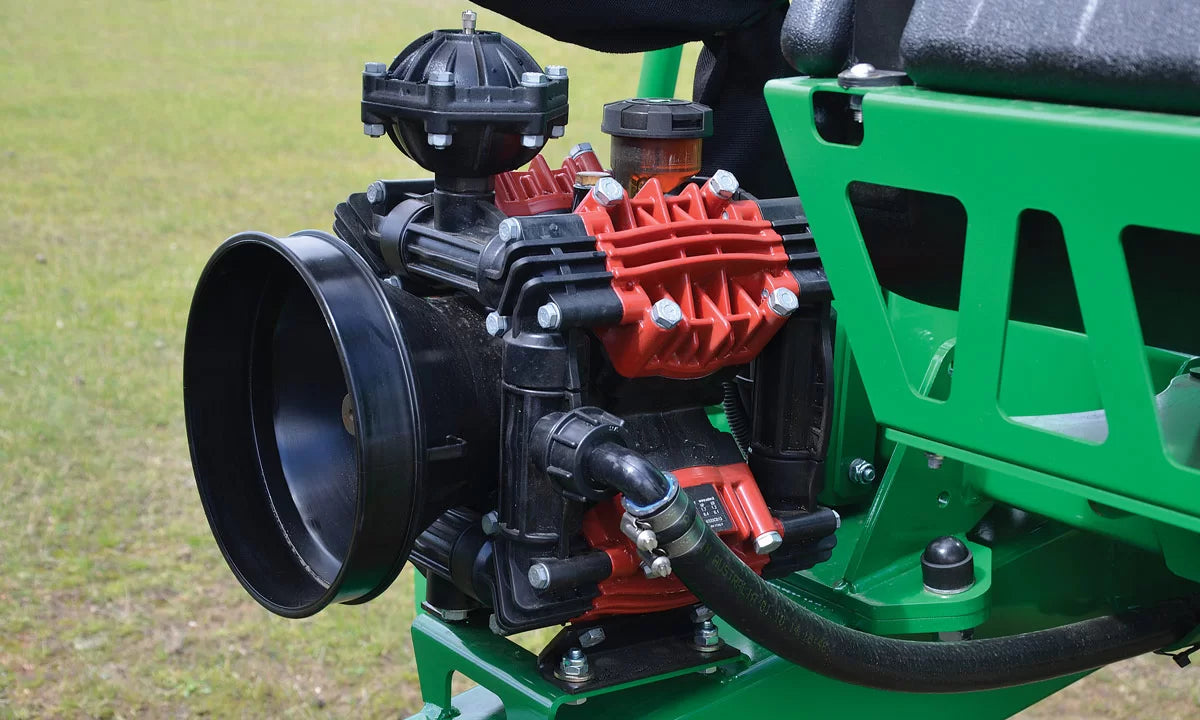

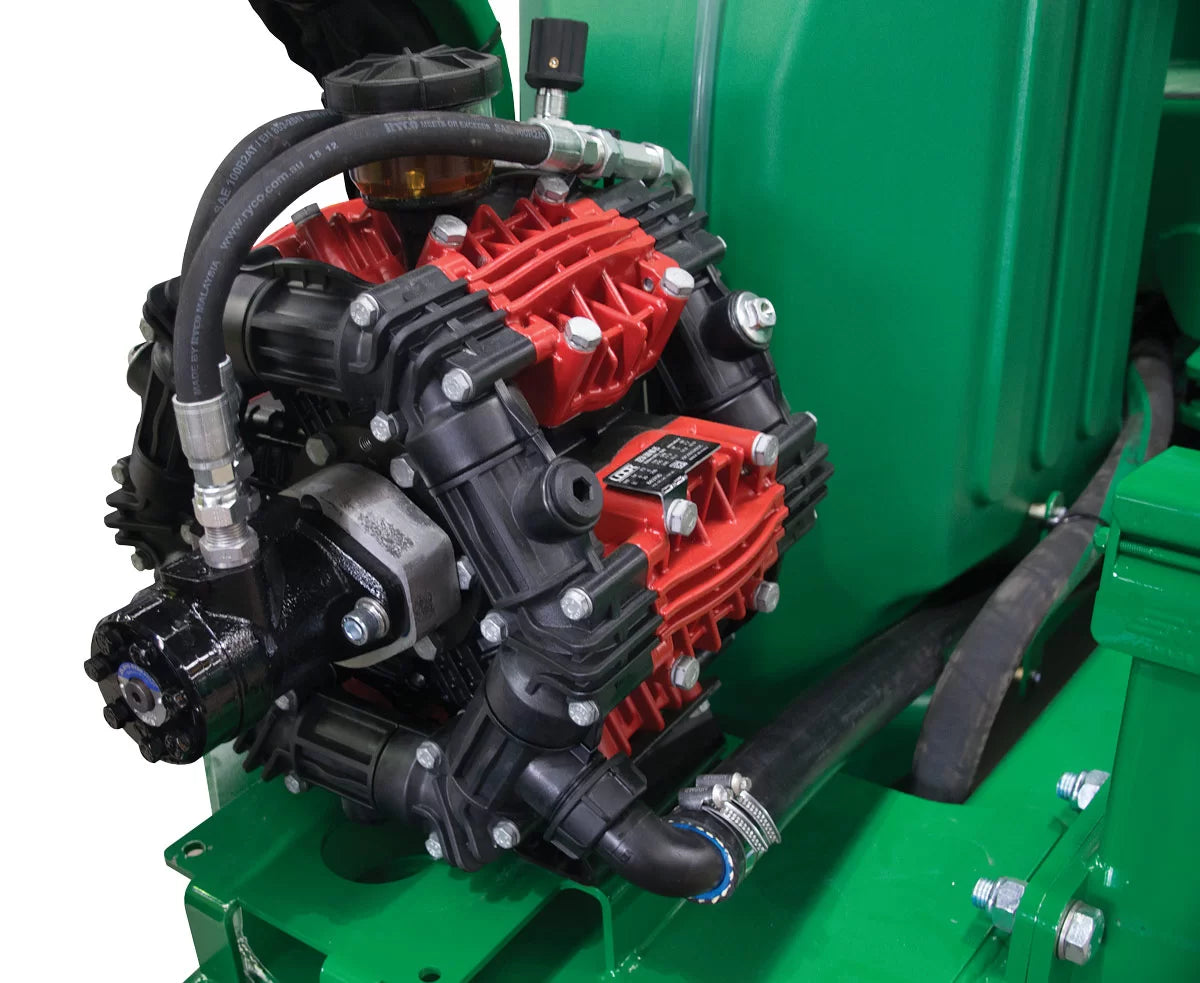

Spray pump	140 l/min with PTO – standard Hydraulic drive – optional	170 l/min with PTO – standard Hydraulic drive – optional
Filtration	1 x suction, 2 x pressure & nozzle filters – standard	1 x suction, 2 x pressure & nozzle filters – standard

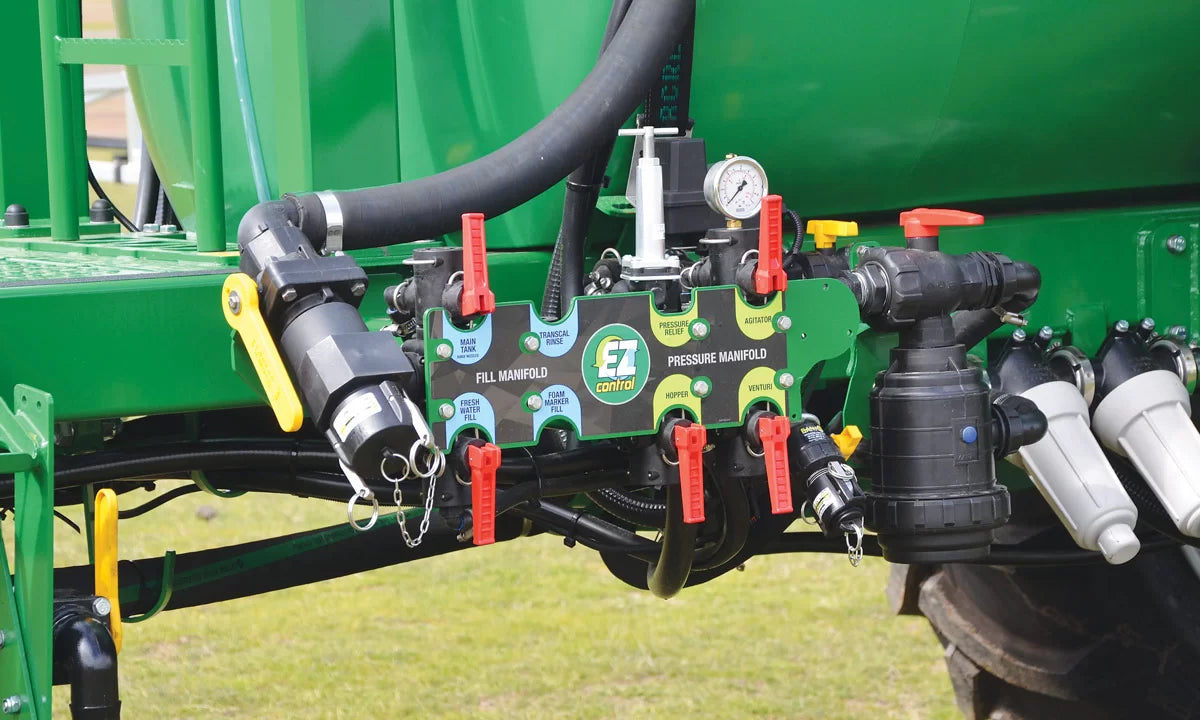

Water transfer (filling)	2” integrated fill point with EZ control	2” integrated fill point with EZ control
Main tank drain	1.5” remote operated	2” remote operated
Main tank capacity	1500L, 2000 or 2500L	3000L
Rinse water tank capacity	100L	180L
Tank rinse nozzles	Single rotating	Twin rotating

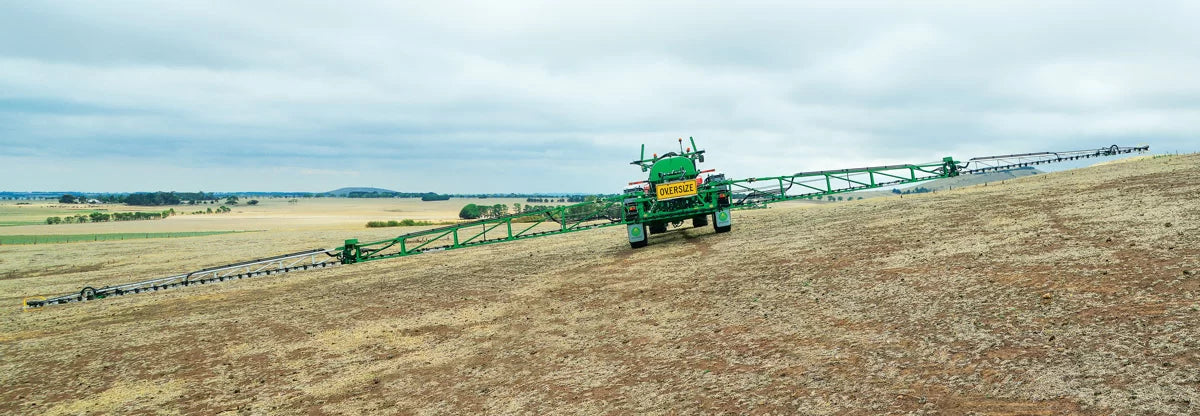

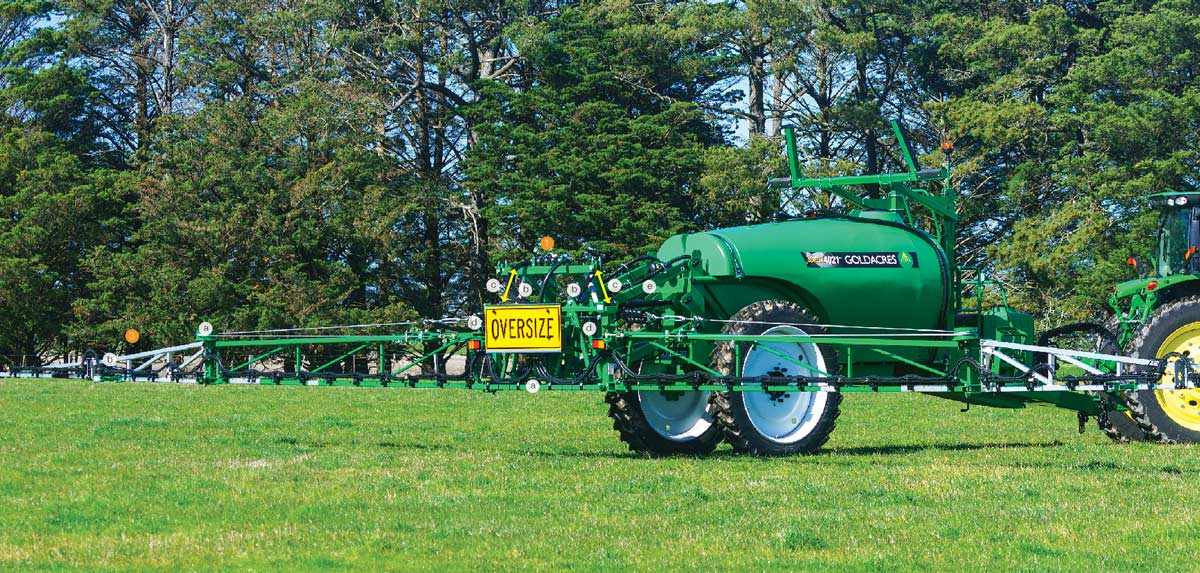

Boom type and size	Delta 15m, 18m and 21m	Delta 18m, 20m, 21m and 24m
Boom outer	Aluminium with outer wing break back feature	Aluminium with outer wing break back feature
3D breakaway mechanism fitted to outer wing	Optional	Optional
Boom end protectors	Optional	Optional

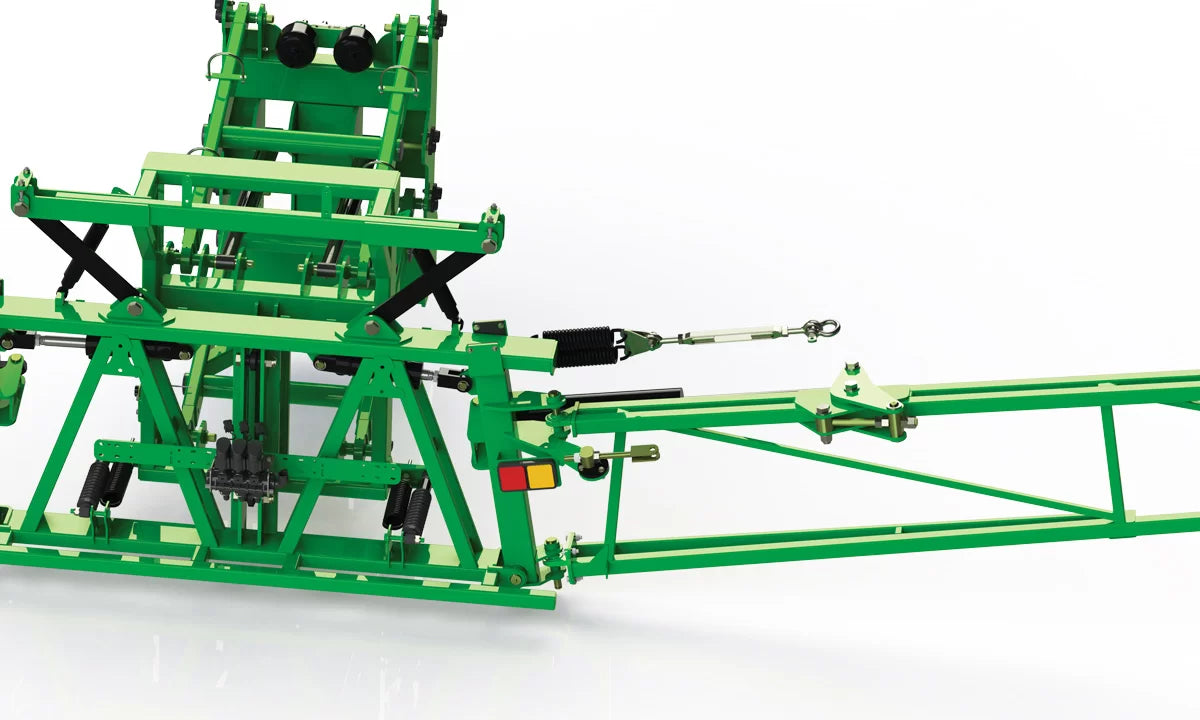

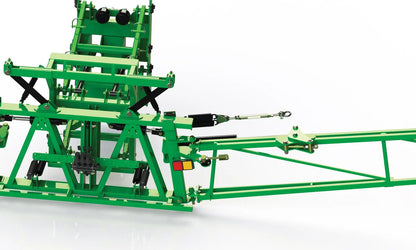

Individual wing tilt	Optional	Optional
Number of hydraulic remotes required	1 set for lift/lower 1 set for fold in/out 1 set for spray pump if hydraulic drive optioned 2 sets for boom wing tilt if optioned	1 set for lift/lower 1 set for fold in/out 1 set for spray pump if hydraulic drive optioned 2 sets for boom wing tilt if optioned

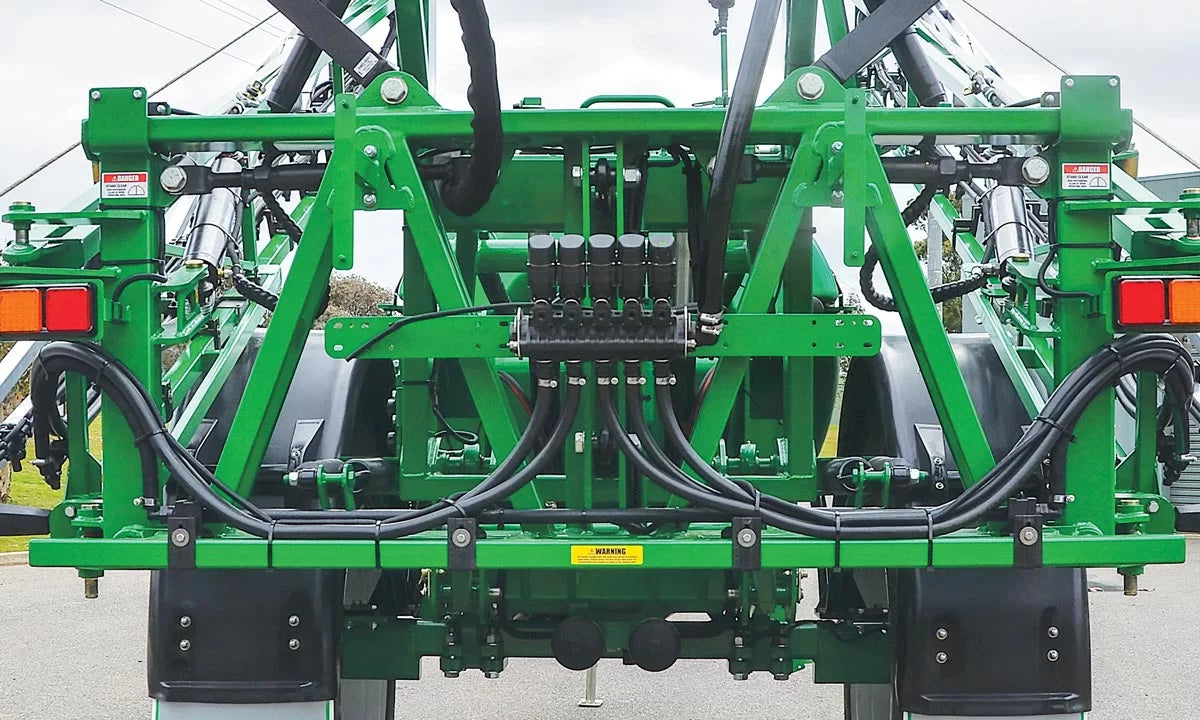

Electric over hydraulic spool valves. (2 sets of remotes required)	Hydraulic manifold to operate 4 functions with switch box. Open or closed centre system	N/A
Number of boom sections	3 equal width section – standard 4 or 5 sections – optional	3 equal width section – standard 4 or 5 sections – optional
Trijets – Turret design	Optional	Optional
Electric operated fence line nozzles	Optional	Optional

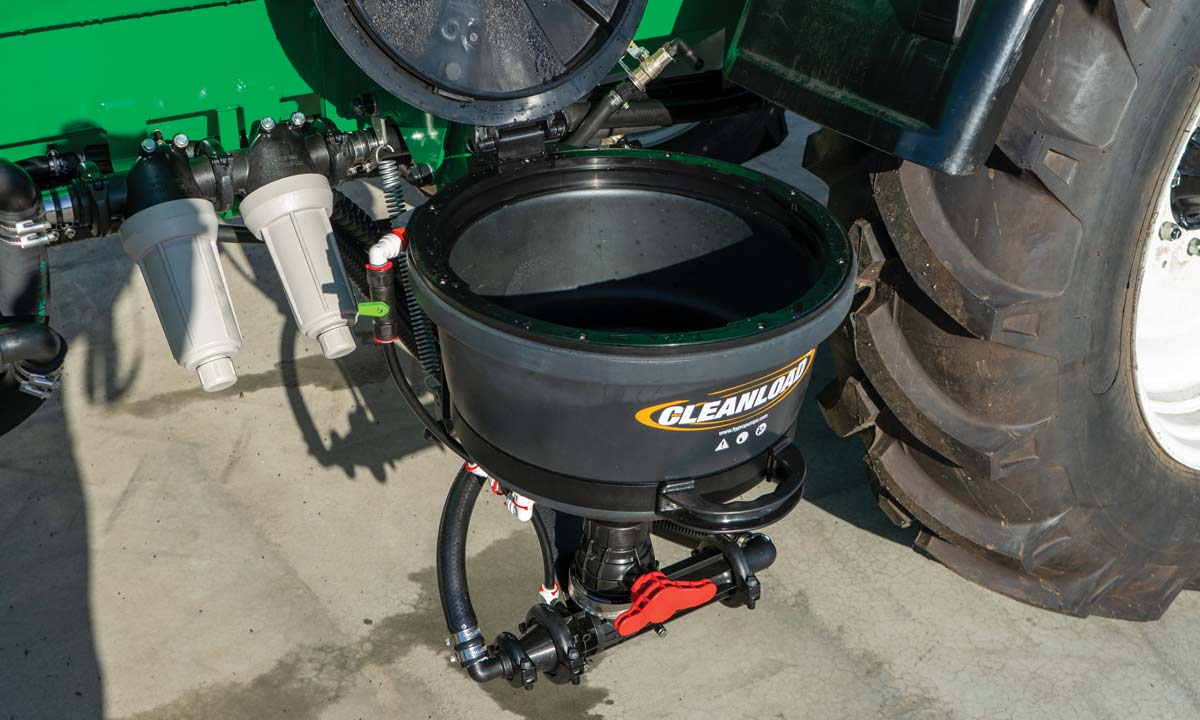

Chemical induction hopper	Optional – 40L	Optional – 40L
Transcal	Optional	Optional
Micromatic rinse socket & coupler	Optional	Optional
Foam marker 100L Exacta double sided	Optional	Optional
